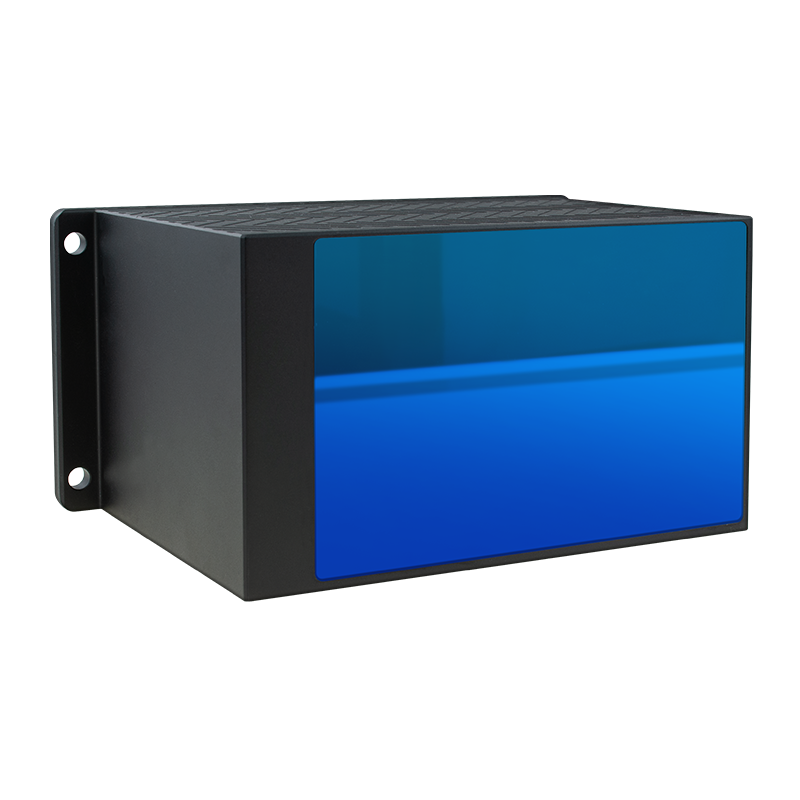

LC5310 series fast scanning LiDAR has excellent detection accuracy and anti-interference performance, with 100m detection range, measurement accuracy ±2cm, and up to 200Hz scanning frequency can be real-time sensing high-speed moving objects.
LC5310 series fast scanning LiDAR has excellent detection accuracy and anti-interference performance, with 100m detection range, measurement accuracy ±2cm, and up to 200Hz scanning frequency can be real-time sensing high-speed moving objects, accurately grasp vehicle contour information, It is widely used in vehicle and cargo contour detection, vehicle type detection, height limit detection, overshooting detection, high-speed ETC capture detection, entry and exit vehicle type classification, traffic flow statistics, ETC.
| Wavelength | 905nm | Data Point Generating Rate | 53,000pts/sec |
| Laser Class | Class I | Communication Interface | Industrial Ethernet |
| Channels | 1 | Input Voltage | 9V~36V DC |
| Detection Method | TOF | IP Grade | IP67 |
| Detection Range | 30/50/70/100m @10% | Operating Temperature | -20℃~65℃ |
| Range Precision | ±3cm | Vibration Test | 5Hz-2000Hz, 3G rms |
| Horizontal FOV | 120° | Shock Test | 500m/sec², lasting for 11ms |
| Horizontal Resolution | 0.09°/0.18°/0.225°/0.27°/0.36° | Weight | ≈1600g |
| FPS | 40/80/120/160Hz | Dimensions (LxWxH) | 155x107.5x90mm |
