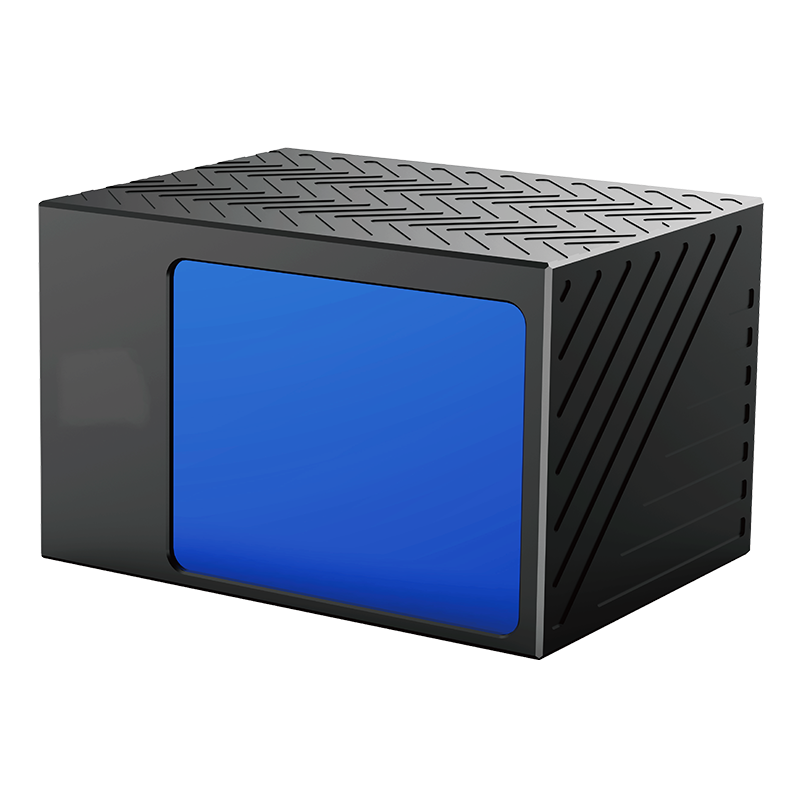

L5220 is a modified version based on the L5210, inheriting its outstanding long-range measurement and high angular resolution characteristics.
L5220 is a modified version based on the L5210, inheriting its outstanding long-range measurement and high angular resolution characteristics. With its exceptional performance and stability, it can easily handle a variety of complex environments, ensuring stable and accurate operation. It is widely used in grain bin testing, volume measurement and other fields.
| Wavelength | 905nm | Data Point Generating Rate | 95,000pts/sec |
| Laser Class | Class I | Communication Interface | Automotive/Industrial Ethernet |
| Channels | 16 | Input Voltage | 9V~36V DC |
| Detection Method | TOF | Power Consumption | 12W |
| Detection Range | 200m (160m@10%) | IP Grade | IP 6K9K |
| Range Precision | ±3cm | Operating Temperature | -40℃～+85℃ |
| Horizontal FOV | 120° | Storage Temperature | -40℃～+105℃ |
| Vertical FOV | -2°~2° | Vibration Test | 5Hz-2000Hz, 3G rms |
| Angular Resolution (H) | 0.06°/0.12°/0.24° (Industrial) 0.1°/0.2°/0.4° (Automotive) | Shock Test | 500m/sec², lasting for 11ms |
| Angular Resolution (V) | 0.25° | Weight | 1000g |
| FPS | 5/10/20Hz | Dimensions (LxWxH) | 118x90x75mm |
