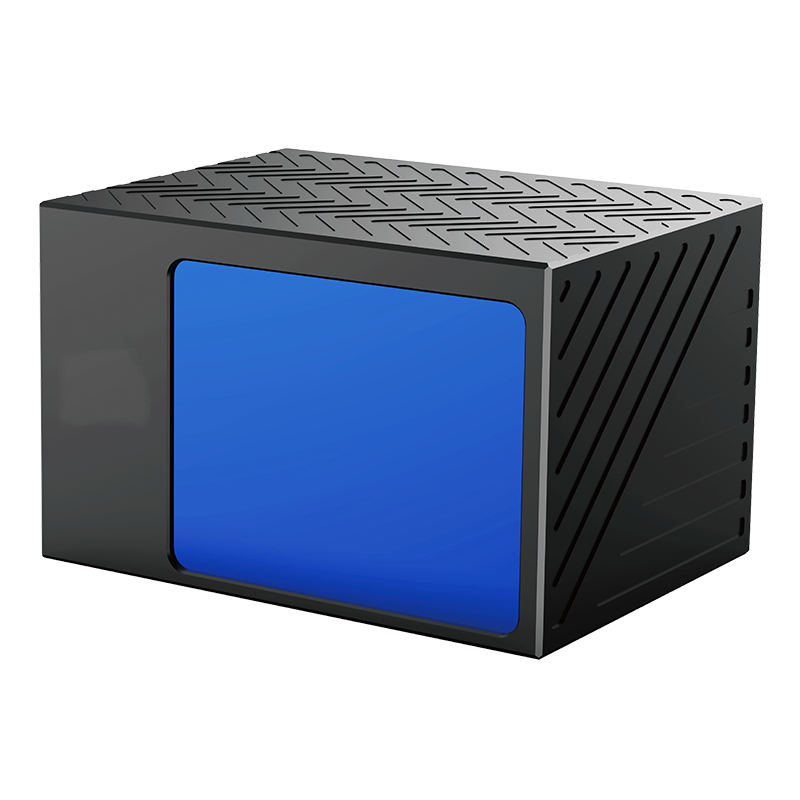

L5210 Series LiDAR features 128 scanning channels, with a maximum detection range of 200m and an accuracy of ±3cm. It achieves a measurement rate of up to 760,000 points per second, creating high-precision 3D environmental point cloud maps.
L5210 Series LiDAR features 128 scanning channels, with a maximum detection range of 200m and an accuracy of ±3cm. It achieves a measurement rate of up to 760,000 points per second, creating high-precision 3D environmental point cloud maps. Combined with rain, fog, and dust filtering algorithms, it operates stably in harsh conditions.
This LiDAR is applicable in autonomous driving, intelligent transportation, vehicle-to-everything (V2X) collaboration, rail transit, high-end security, and surveying fields.
| Model | LC5211 | LC5212 | |
| LASER | Wavelength | 905nm | 905nm |
| Laser Class | Class I | Class I | |
| SPEC | Channels | 128 | 128 |
| Detection Method | TOF | TOF | |
| Detection Range | 200m (160m@10%) | 200m (160m@10%) | |
| Range Precision | ±3cm | ±3cm | |
| Horizontal FOV | 120° | 120° | |
| Vertical FOV | 25° (-18°~7°) | 25° (-12.5°~12.5°) | |
| Angular Resolution (H) | 0.1°/0.2°/0.4° | 0.1° / 0.2° / 0.4 | |
| Angular Resolution (V) | 0.125°@ROI, 0.25°@Non ROI | 0.125°@ROI， 0.25°@Non ROI | |
| FPS | 5/10/20Hz | 5 / 10 / 20 Hz | |
| EXPORT | Data Point Generating Rate | 760,000pts/sec | 760,000pts/sec |
| Communication Interface | Automotive / Industrial Ethernet | Automotive Ethernet | |
| ELECTRIC | Input Voltage | 9V~36V DC | 9V~36V DC |
| Power Consumption | 15W | 12W | |
| ENVIRONMENT | AUTOSAR | ASIL B | ASIL B |
| IP Grade | IP6K9K | IP6K9K | |
| Operating Temperature | -40℃~85℃ | -40℃~85℃ | |
| Vibration Test | 10Hz-2000Hz, 3G rms | 5Hz-2000Hz, 3G rms | |
| Shock Test | 500m/sec², lasting for 11ms | 500m/sec², lasting for 11ms | |
| MACHINE | Weight | 1000g | 1000g |
| Dimensions (LxWxH) | 118x90x75mm | 118x90x75mm |
