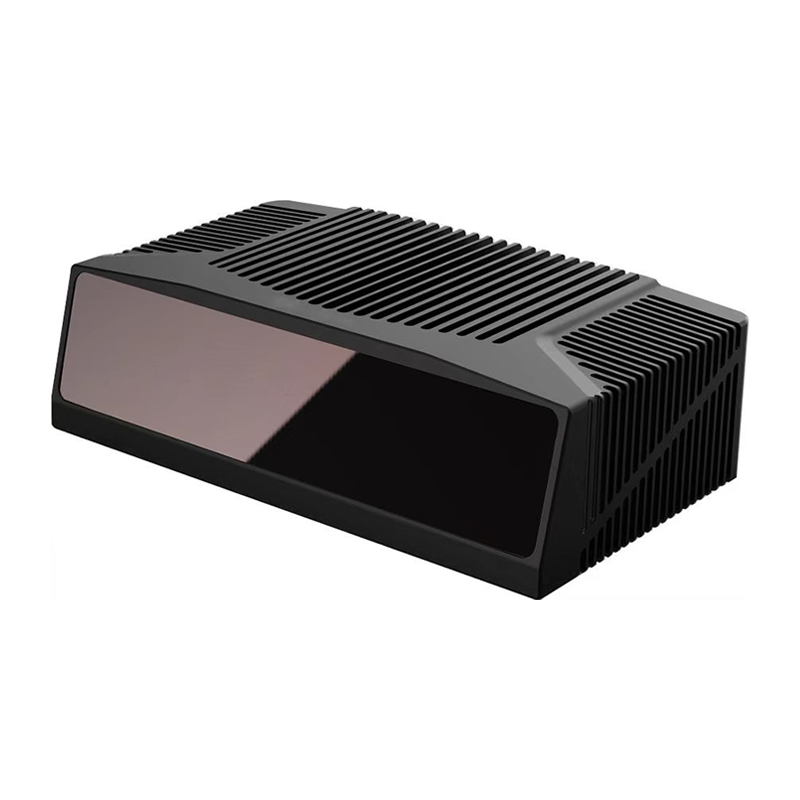

LC5140 utilizes in-housed 1550nm fiber laser and over a dozen high-power core optical components. It boasts exceptional long-range small object detection capabilities and an extremely high-density point cloud performance.
LC5140 utilizes in-housed 1550nm fiber laser and over a dozen high-power core optical components. It boasts exceptional long-range small object detection capabilities and an extremely high-density point cloud performance.
It has a detection range of 2 to 150m and an ultra-wide field of view of 120°(H)x73°(V). With a measurement rate of 3.7 million points per second, it can accurately identify various target attributes such as humans, animals, vehicles, tires, and fallen objects over a large area, providing output information on distance and 3D contours.
| Wavelength | 1550nm | Input Voltage | 9~36V DC |
| Detection Range | 2~60m (Max 150m) | Power Consumption | ≤40W |
| Range Precision | ±2cm | Communication Interface | Industrial Ethernet |
| FPS | 10Hz | Operating Temperature | -40℃~75℃ |
| Horizontal FOV | 120° | IP Grade | IP6K9K |
| Vertical FOV | 73° (±36.5°) | Vibration Test | 500m/sec², lasting for 11ms |
| Angular Resolution (H) | 0.155° | Shock Test | 5Hz～2000Hz, 3G rms |
| Angular Resolution (V) | 0.146° | Weight | ≤3000g |
| Data Point Generating Rate | 3,700,000pts/sec | Dimensions (LxWxH) | 270x160x80mm |
